- Commodity name： A36 Carbon steel strip
A36 Carbon steel strip
Keyword:
A36 Carbon steel strip
Related Products
A36 is an American standard carbon structural plate, which is subject to ASTM A36/A36M. This standard is applicable to riveting, bolting and welding structures for bridges and buildings, as well as general purpose structural steel quality carbon steel sections, plates and bars.
Product Name | A36 Carbon steel strip | |||||
Material | C50S, C55S, C60S, C67S, C70S, C75S, C80S, C95S, 50CrV4, 51CrV4, SK5, 60Si2Mn, etc. | |||||
Color | blue polished, polished-bright, white, blue, yellow, etc. | |||||
Technique | cold rolled, annealed, heat treatment with hardened and tempered | |||||
Hardness | 18-55 HRC | |||||
Edge | slit, square, rounded etc. | |||||
Application | Rolling shutter door spring steel strip, Band saw blade, Packing steel strapping, Stampings, clips, wiper blade, Construction tools etc. | |||||
Package | each bundle with light oil and plastic film then wrapped in anti-rust paper with metallic pallet | |||||
The Regular size according to clients request(mm) | ||||||
60 x 1.60 | 50 x 1.50 | 65 x 1.20 | 60 x 1.0 | 45 x 1.0 | 40 x 1.0 | 45 x 1.40 |
80 x 1.40 | 45 x 1.50 | 60 x 1.20 | 55 x 1.0 | 40 x 1.40 | 55 x 1.40 | 50 x 1.40 |
65 x 1.40 | 60 x 1.30 | 60 x 1.10 | 55 x 1.20 | 40 x 1.30 | 50 x 1.25 | 50 x 1.30 |
50 x 1.0 | 60 x 1.40 | 55 x 1.30 | 50 x 1.20 | 45 x 1.30 | 40 x 1.20 | 45 x 1.10 |
Chemical Composition
C | Cu | Fe | Mn | P | Si | S |
0.25-0.290 | 0.20 | 98.0 | 1.03 | 0.040 | 0.280 | 0.050 |
Mechanical Properties
A36 | Limit Tensile Strength | Tensile Strength, Yield Strength | Elongation at Break (Unit: 200 mm) | Elongation at break (Unit: 50 mm) | Modulus of Elasticity | Bulk Modulus (Typical for Steel) | Poisson's Ratio | Shear Modulus |
Metric | 400-550 MPa | 250 MPa | 20.0 % | 23.0 % | 200 GPa | 140 GPa | 0.260 | 79.3 GPa |
Imperial | 58000-79800 psi | 36300 psi | 20.0 % | 23.0 % | 29000 ksi | 20300 ksi | 0.260 | 11500 ksi |
Physical Performance
Physical Performance | Metric | Imperial |
Density | 7.85 g/cm3 | 0.284 lb/in3 |
Scope of Application
Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.
Our steel strip are widely applied to:
1) construction tools(trowels, putty knives, scrapers, spatulas)
2) cutting tools(band saw blade)agriculture tools
3) roller shutter spring, roller shutter door, spring clip, metal clip
4) shoes metal accessories(shoes insole, shoes shank, toe caps)
5) shims and washers for automobile etc.
Hardened and tempered steel strips
Dimensions
Thickness: 0.08mm to 3.00mm
Width: 2mm to 300mm
Hardness: 40-55HRC
Surface: nature, blue, yellow, white, polish
Edge: slit, round, square
Application: H+T steel strips are widely used for rolling shutter door springs, band saw blade, scraper, trowel, putty knives,
shoe insole, knives, kinds of flat springs, etc, which don`t require severe bending.
Cold rolled annealed steel strips
Dimensions
Thickness: 0.08mm to 4.00mm
Width: 2mm to 320mm
Hardness: max 180HV
Surface: polish, bright
Edge: slit
Application: Cold rolled annealed steel strips are mainly suitable for product requiring or severe bending and shaping before
heat-treatment to very high hardness, such as springs, washers, spacers, clips, pin, inserts, shoe shank, toe cap, auto
components, auto clutches, etc.

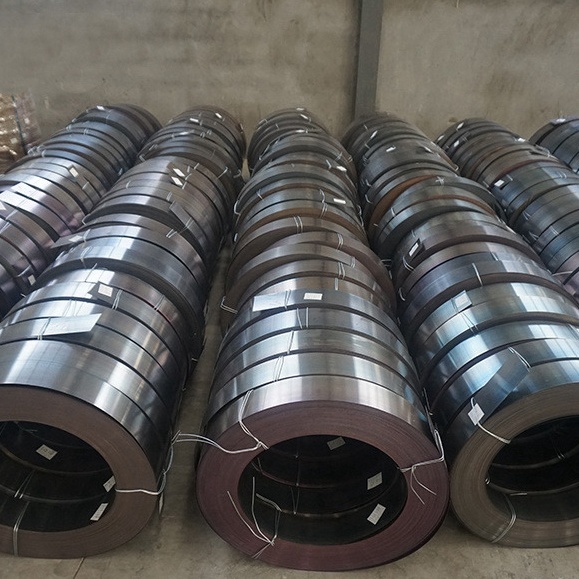

Spring steel strip for rolling shutter door
blue spring steel + hardened and tempered conditions
Thickness: 1.0mm-1.6mm thickness
Width: 40mm-80mm width,
Surface: polish blue, grey-blue
Edge: round
MOQ 2tons for each size
good quality and excellent elasticity
From first-rate raw material, cold rolling, quenching and tempering process, de-burring edges, etc. Each production step is checked carefully in width, thickness, hardness, edge as flexibility, toughness, etc.
Packing And Delivery
Located in the Free Trade Pilot Zone of Jinan City, Shandong Province, close to Tianjin Port and Qingdao Port, China's famous ports, it has a superior production and operation environment, convenient logistics exports, mature industrial facilities, and complete supporting industries.
Honor
Quality-oriented, constantly achieve product optimization, to create high-quality steel, is our constant pursuit. The products have passed the national security 3C certification, EU CE certification and ISO9001 international quality system certification.

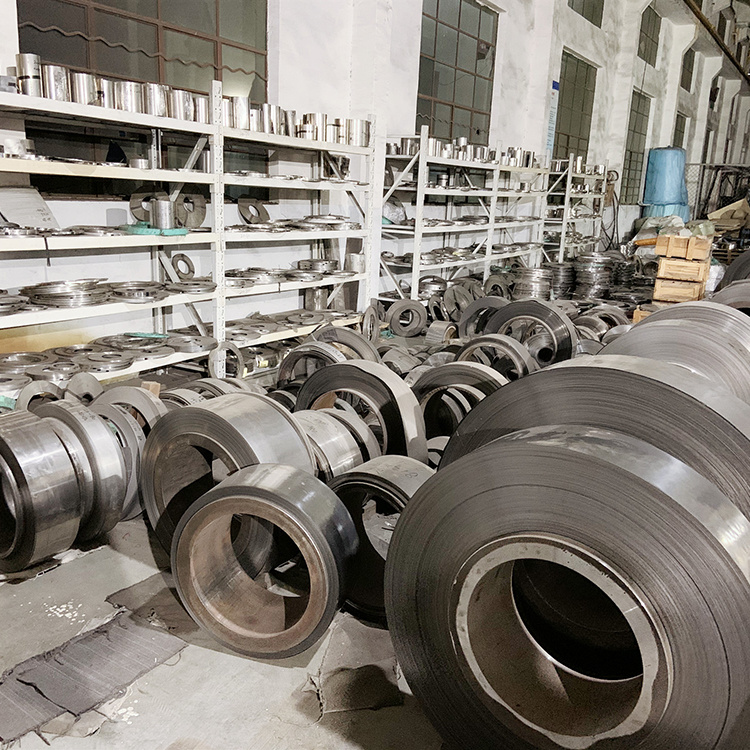

Factory
The company is equipped with a complete product production line. Cutting machines, bending machines, punches, water jet cutting machines, polishing machines, shearing machines, wire drawing machines and other professional equipment are complete.
