Commodity name： 2507 stainless steel pipe

2507 stainless steel pipe

Category:

Stainless steel pipe

2507 stainless steel pipe is used in oil and natural gas industry; Offshore stone skyshatter oil platform (heat exchanger pipe, water treatment and water supply system, fire protection system, water spraying system, water stabilization system; petrochemical equipment; desalination (desalination) equipment (and high-pressure pipe and seawater pipe in the equipment). Mechanical and structural components that require both high strength and high corrosion resistance: fuel (waste) gas purification equipment.

Keyword:

sales07@zxjtsteel.com

Get expert sales advice within 12 hours.

WeChat

Get a Quote

Related Products

Use of 2507 stainless steel pipe: 1. The heater is generally used in the oil refining unit; 2. Chemical plant equipment pipeline; 3. Fast cooling cylinder for solid solution used in textile industry; 4. Seamless steel pipe for heat exchanger and condenser. 5. High pressure seamless steel pipe for food (gb-2000) is a high-quality carbon structural steel and alloy steel seamless steel pipe suitable for chemical equipment and pipes with working temperature of - 40~400 ° C and working pressure of 10~30ma. 6. Seamless steel pipes for geological drilling and oil drilling control. 7. Cracking pipe for petrochemical industry is used to transport high-temperature and high-pressure fluid on fertilizer equipment.

2507 stainless steel pipe
Standard	Food Grade Sanitary Tube: JIS G3447, KS D 3585, ASTM A270, EN 10357(DIN 11850), AS 1528.1, ISO 2037(NF A49-249)
	Heat exchanger tube: ASTM A249 / ASME SA249, GB / T 24593-2009, HG 20537.2
	Industrial pipe: ASTM A312, EN 10217-7, GB / T 12771-2008, HG 20537.3
	Drinking water tube: GB / T 19228
	Mechanical tube: ASTM A554, EN 10296-2
Size	Outer Diameter Range: 9.5~2000mm Thickness Range: 0.5~20mm (Size can be customized.) Length: Up to 18.3 meters per piece.
Shape Section	Round, square, rectangular
Usage	Sanitary tubing: for food processing industry, beverage industry, sugar mill and so on; Heat exchanger tube: condenser, boiler, super heater, evaporator and so on; Industiral pipe: for petroleum delivery, gas delivery, petrochemical industry, wastewater treatment, drainage system, and so on; Mechanical tube: handrail, railings, balustrade, hence and so on.

Chemical Composition

C	Si	Mn	Cr	Ni	Mo	S	P
≤ 0.03	≤ 0.8	≤ 1.2	24.0～26.0	6.0～8.0	3.0～5.0	≤ 0.02	≤ 0.035

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥795	≥550	≥15	≤ 310HB

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10^-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.75	200	13.0	17.0	80

Features:

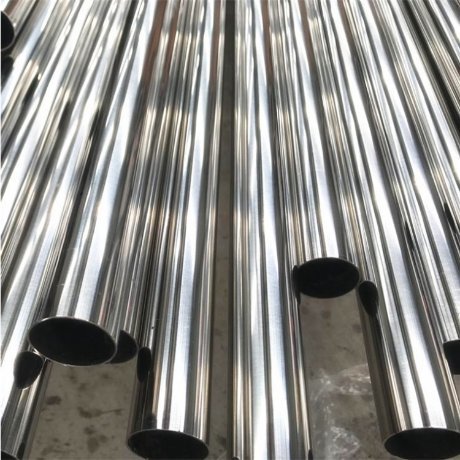

1.Our stainless steel tubes pipes are treated by bright annealing, inside weld bead removing, precise polishing. The roughness of tubes could be under 0.3μm.

2.We have the non destructive testing ( NDT ), eg. online eddy current inspection and hydraulic or airtightness testing.

3. Thick welding, good appearance.The mechanical properties of tube could be tested.

4. The raw material is from Taigang, Baogang, Zhangpu and so on.

5. And Our tubes are certificated by AD 2000-W0, PED 2014/68/EU, ISO 9001 : 2015.

6. Full material traceability is guaranteed during the manufacturing process.

7. Polished tube is supplied in individual plastic sleeves with capped ends ensuring optimum cleanliness.

8. Internal Bore: Tubes have a smooth, clean and crevice free bore.

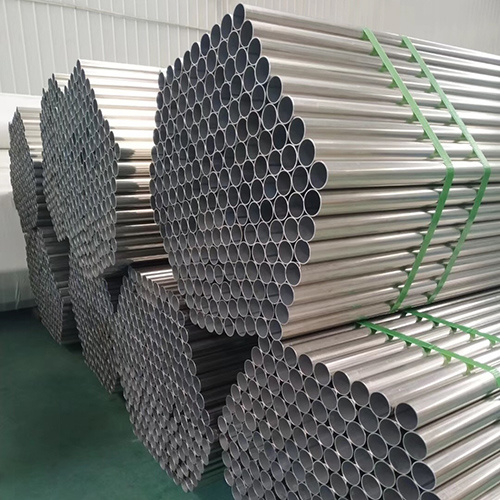

Packing And Delivery

Located in the Free Trade Pilot Zone of Jinan City, Shandong Province, close to Tianjin Port and Qingdao Port, China's famous ports, it has a superior production and operation environment, convenient logistics exports, mature industrial facilities, and complete supporting industries.

Honor

Quality-oriented, constantly achieve product optimization, to create high-quality steel, is our constant pursuit. The products have passed the national security 3C certification, EU CE certification and ISO9001 international quality system certification.

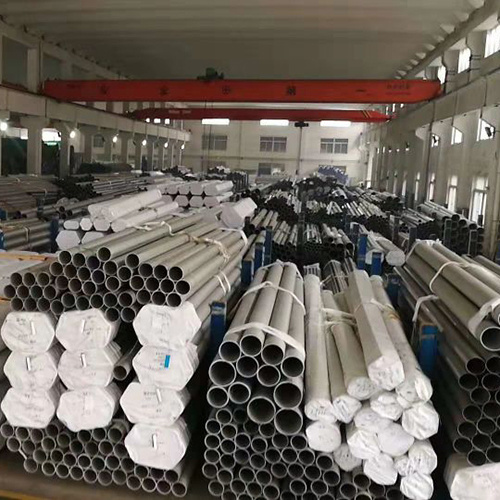

Factory

The company is equipped with a complete product production line. Cutting machines, bending machines, punches, water jet cutting machines, polishing machines, shearing machines, wire drawing machines and other professional equipment are complete.

Customer visit

Get A Quote

How long does your delivery time take?

Generally, our delivery time is within 7-45 days, if there is a great demand or special circumstances, it may be delayed.

How could you guarantee your products?

Each piece of products is manufactured by certified workshops, inspected by Linxu piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.

Do you accept the third party inspection?

Yes absolutely we accept.

Do you provide samples ? Is it free or extra ?

The sample could can provide for customer with free,but the courier freight will be covered by customer account.

Will you delivery the goods on time?

Yes,we promise to provide best quality products and delivery on time. Honesty is our company's tenet.

Are you trading company or manufacturer ?

We are professional manufacturer with rich experience, and our company also is a very professional a trade company for steel products. We can also provide a wide range of steel products.
